Project Overview

Task:
Develop an algorithm for Object Detection, 6DOF Pose Estimation, and Grasp Pose Extraction for the RCUP@Work Objects Dataset.

This project aims to enable robotic systems to detect objects, estimate their 6 Degrees of Freedom (6DOF) pose, and determine optimal grasp poses for manipulation tasks. The implementation is built from scratch using fundamental techniques, avoiding pre-built grasp detection solutions.

How It Works

Pipeline Overview

1. Object Detection

   • Detect objects in the RCUP@Work dataset using deep convolutional neural network (CNN).
   • Output: Bounding boxes for detected objects.

2. 6DOF Pose Estimation

   • Estimate the position (x, y, z) and orientation (roll, pitch, yaw) of the detected objects and (u,v) keypoints extracted.
   • Output: A 6DOF pose for each object.

3. Grasp Pose Extraction

   • Analyze the object’s geometry and pose to compute optimal grasp points.
   • Output: Grasp poses suitable for robotic manipulation.

Mathematical Concepts

1. Keypoint Detection

   • Utilizes a custom algorithm to extract corner points from object images, with fallback mechanisms for low keypoint scenarios.
   • Mathematics:
     • Edge Detection: Apply Gaussian blur to reduce noise and use Canny edge detection to identify edges.
     • Contour Approximation: Filter contours by length and approximate them using the Douglas-Peucker algorithm to extract corner points.
     • Fallback Strategy: Iteratively relax constraints (e.g., reduce contour length and approximation epsilon) to ensure at least 4 keypoints are detected.
     • Keypoint Selection: Limit the number of keypoints to a maximum threshold (e.g., 10) for computational efficiency.
   • Algorithm Overview:

     def extract_corner_points(image, min_contour_length=50, max_corners=10, epsilon_factor=0.02):
           # Step 1: Preprocess image (grayscale, blur, edge detection)
           # Step 2: Find and filter contours by length
           # Step 3: Approximate contours to extract corner points
           # Step 4: Apply fallback if fewer than 4 keypoints are found
           # Step 5: Limit keypoints to `max_corners` and visualize results
           return corner_points, edges

   • Output:
     • Extracted 2D corner keypoints (N, 2).

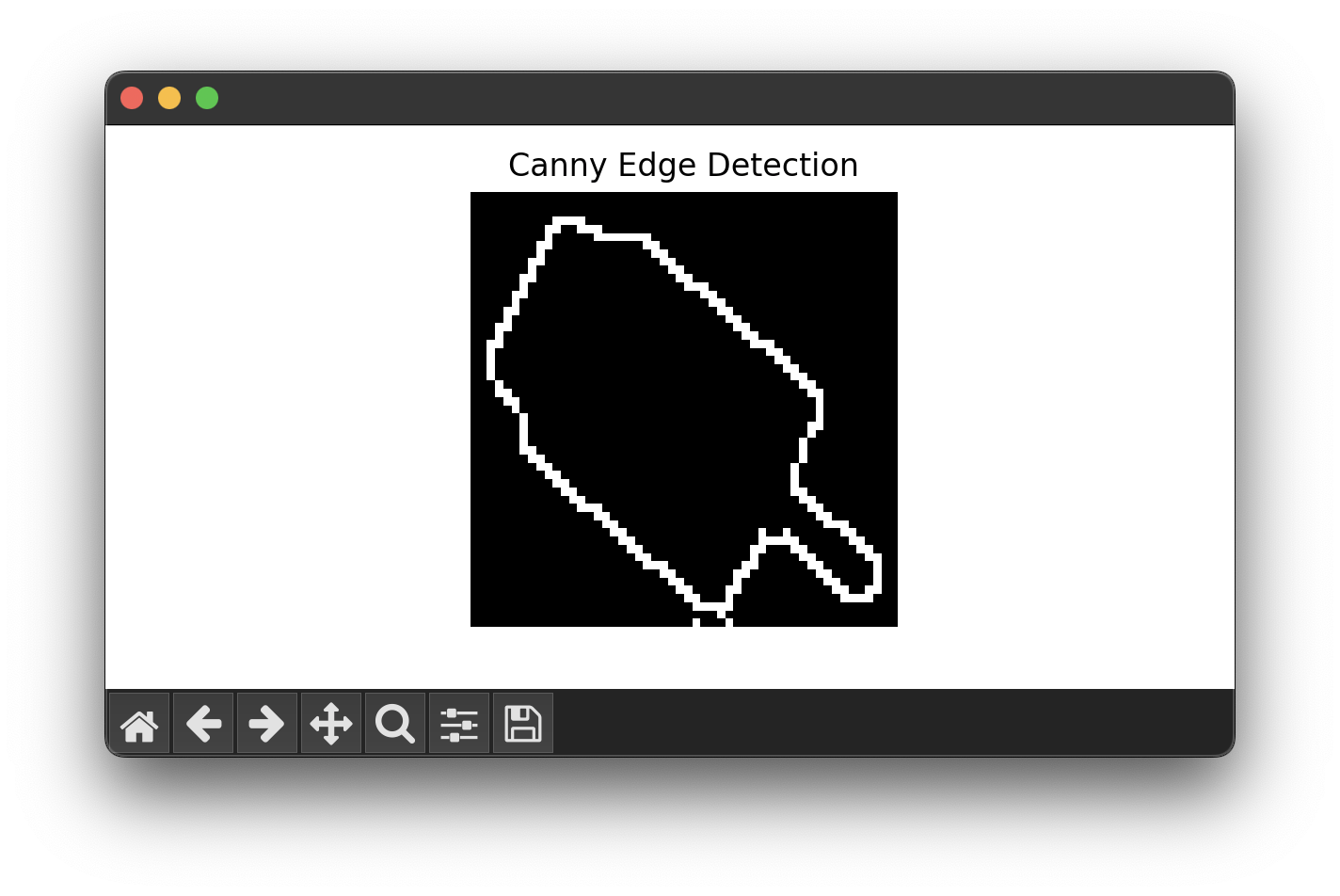

     • Edge-detected image for visualization.

2. 6DOF Pose Estimation

   • Relies on solving the Perspective-n-Point (PnP) problem.
   • Mathematics:
     • Camera projection model:

       s * [u, v, 1]^T = K * [R | t] * [X, Y, Z, 1]^T

       Where K is the camera intrinsic matrix, [R | t] is the rotation and translation matrix, and [X, Y, Z] are 3D object points.

3. Grasp Pose Extraction

• Computes grasp points based on object geometry and stability analysis.
  • Mathematics:
    • Principal Component Analysis (PCA): Identify the object’s major and minor axes from contour points.
    • Grasp point selection: Choose two points along the minor axis, equidistant from the object’s centroid.

Deliverables

Visualizations

• Images or videos demonstrating:

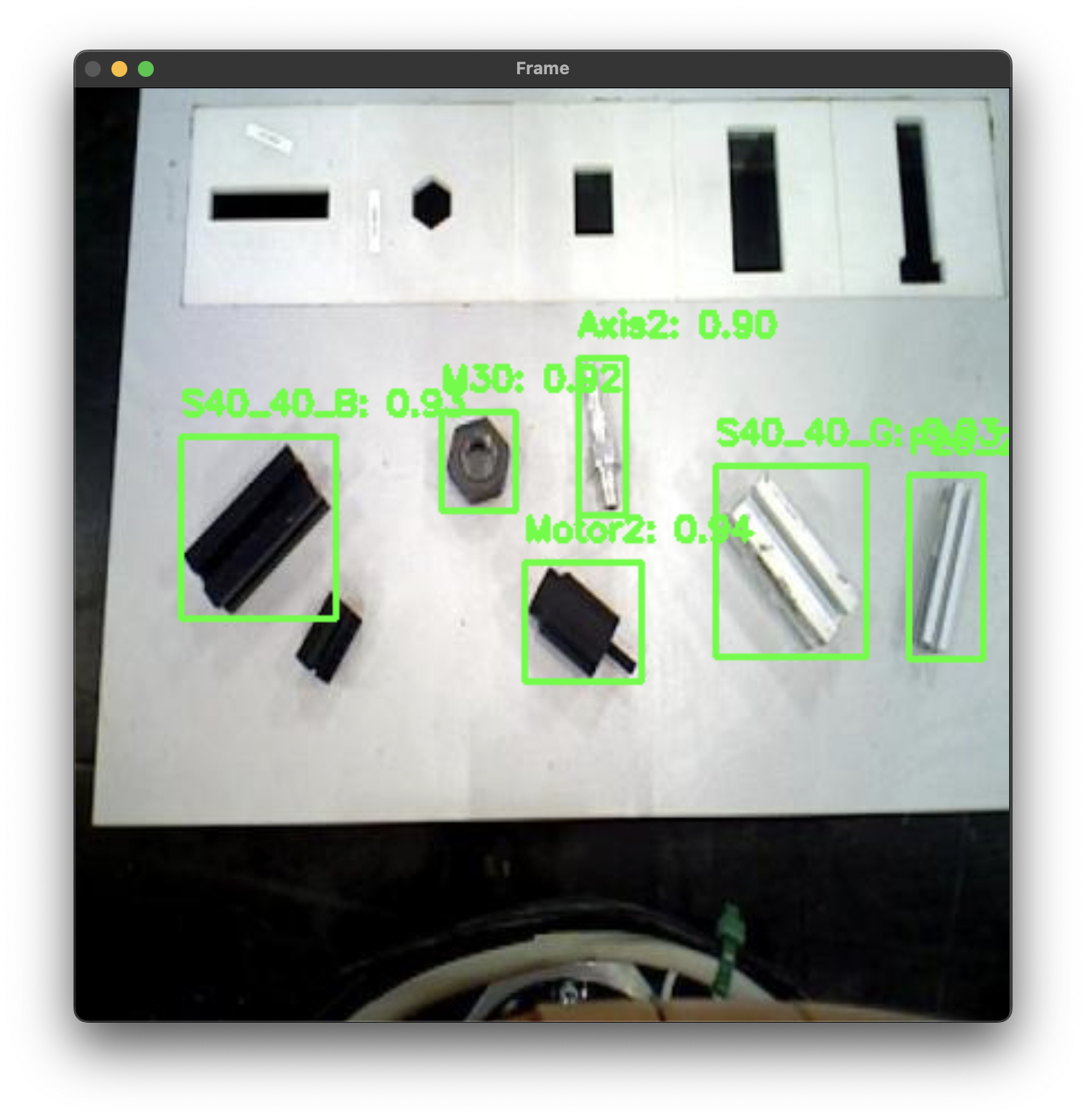

  • Detected objects with bounding boxes.

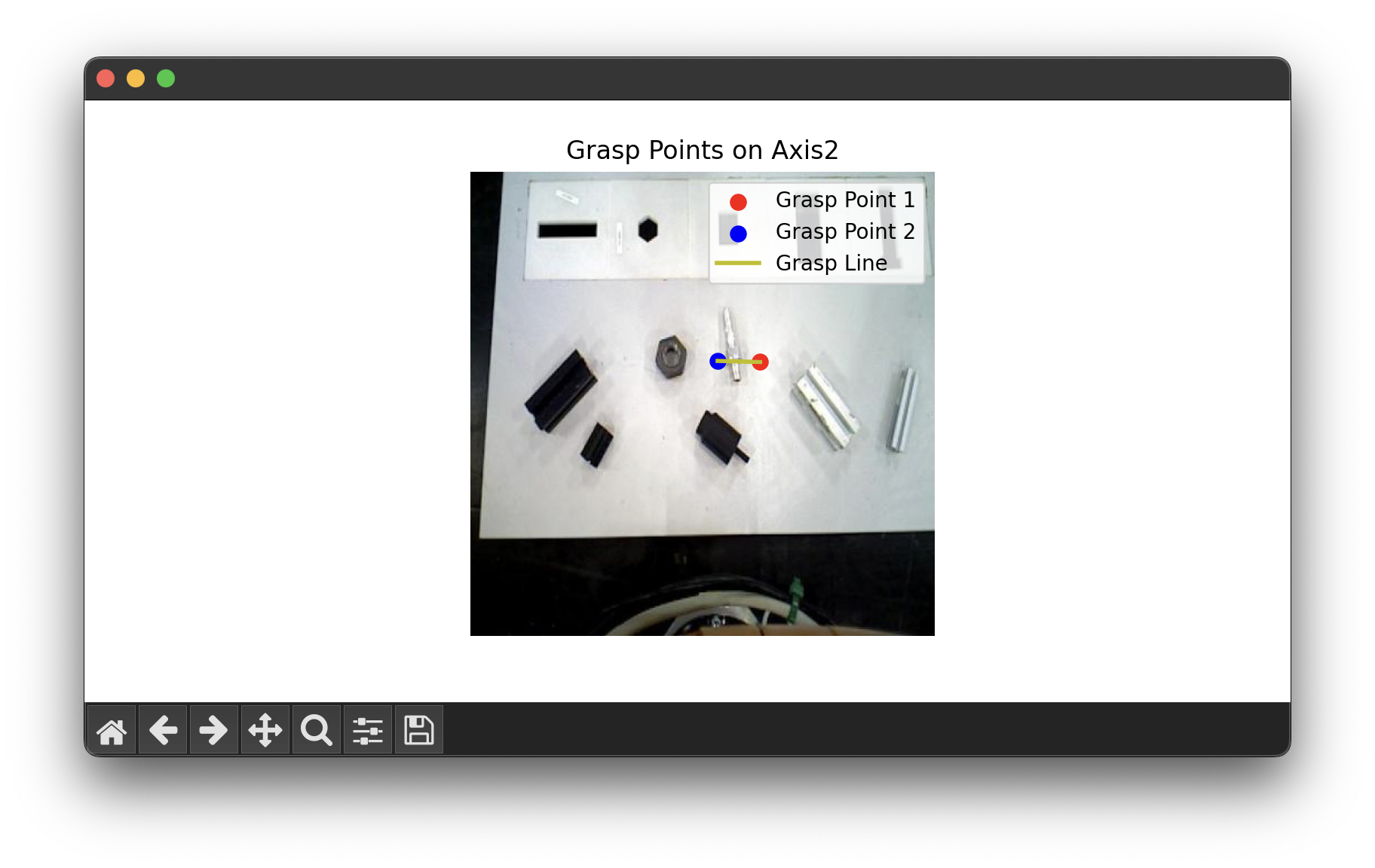

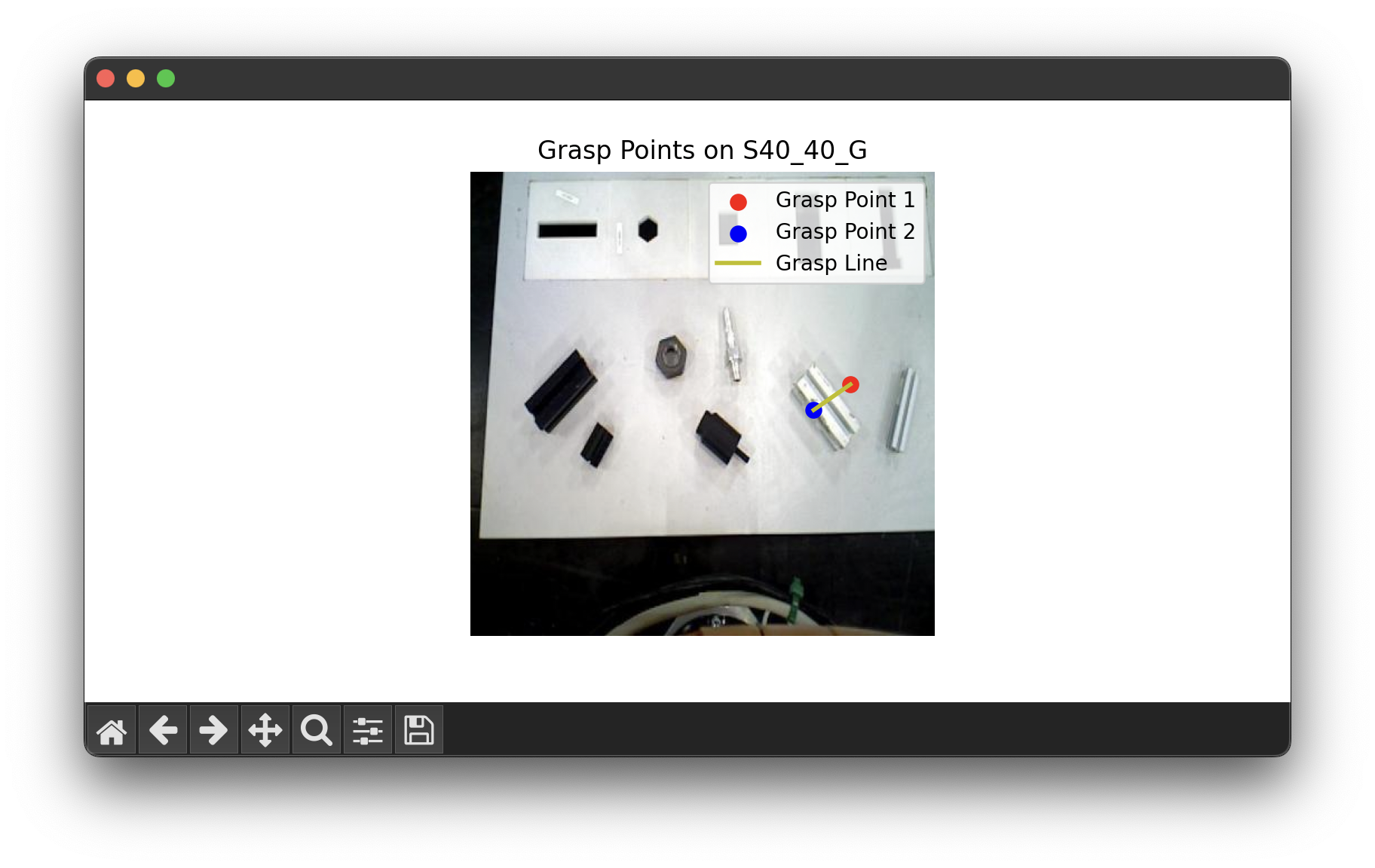

  • Grasp points overlaid on objects.

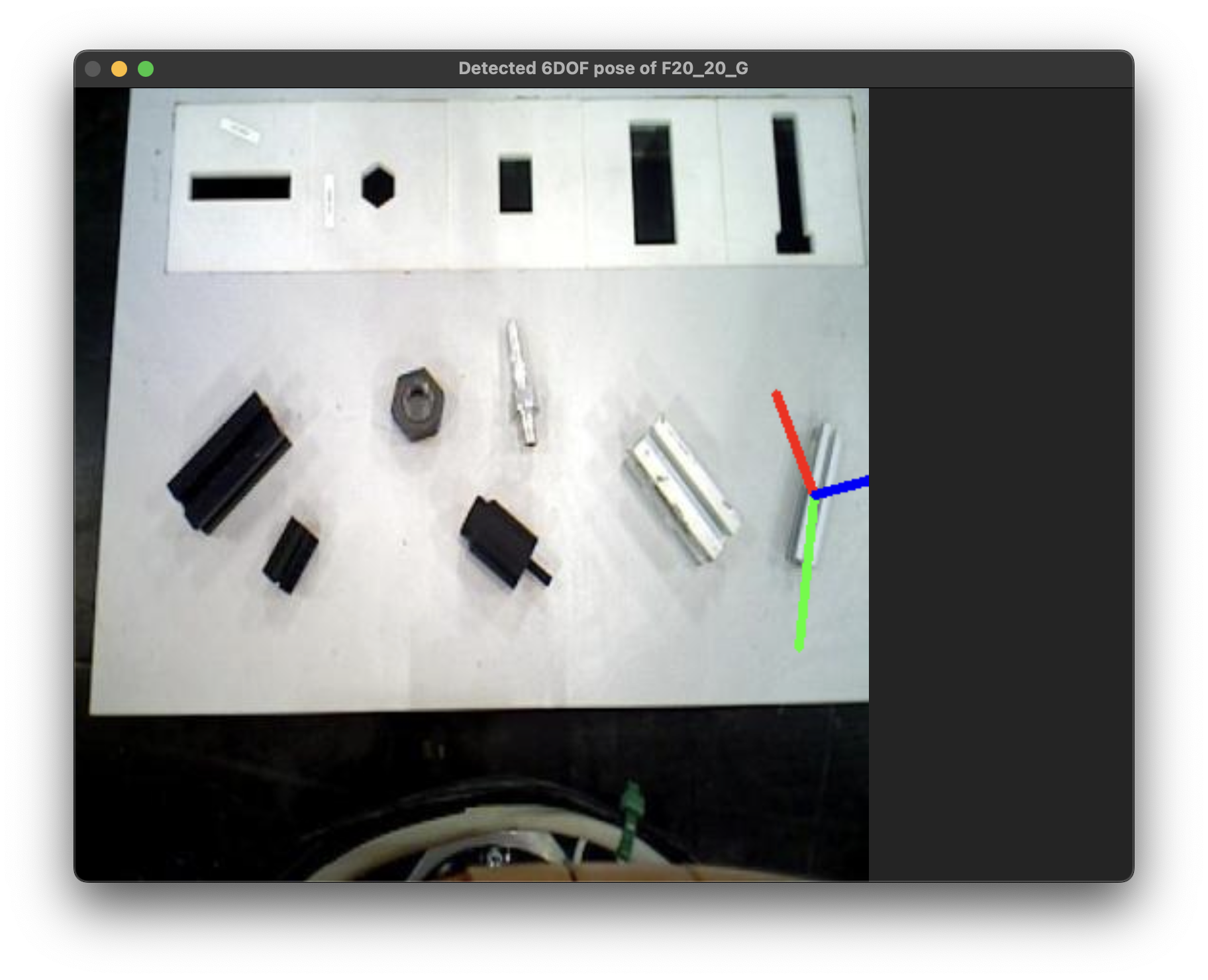

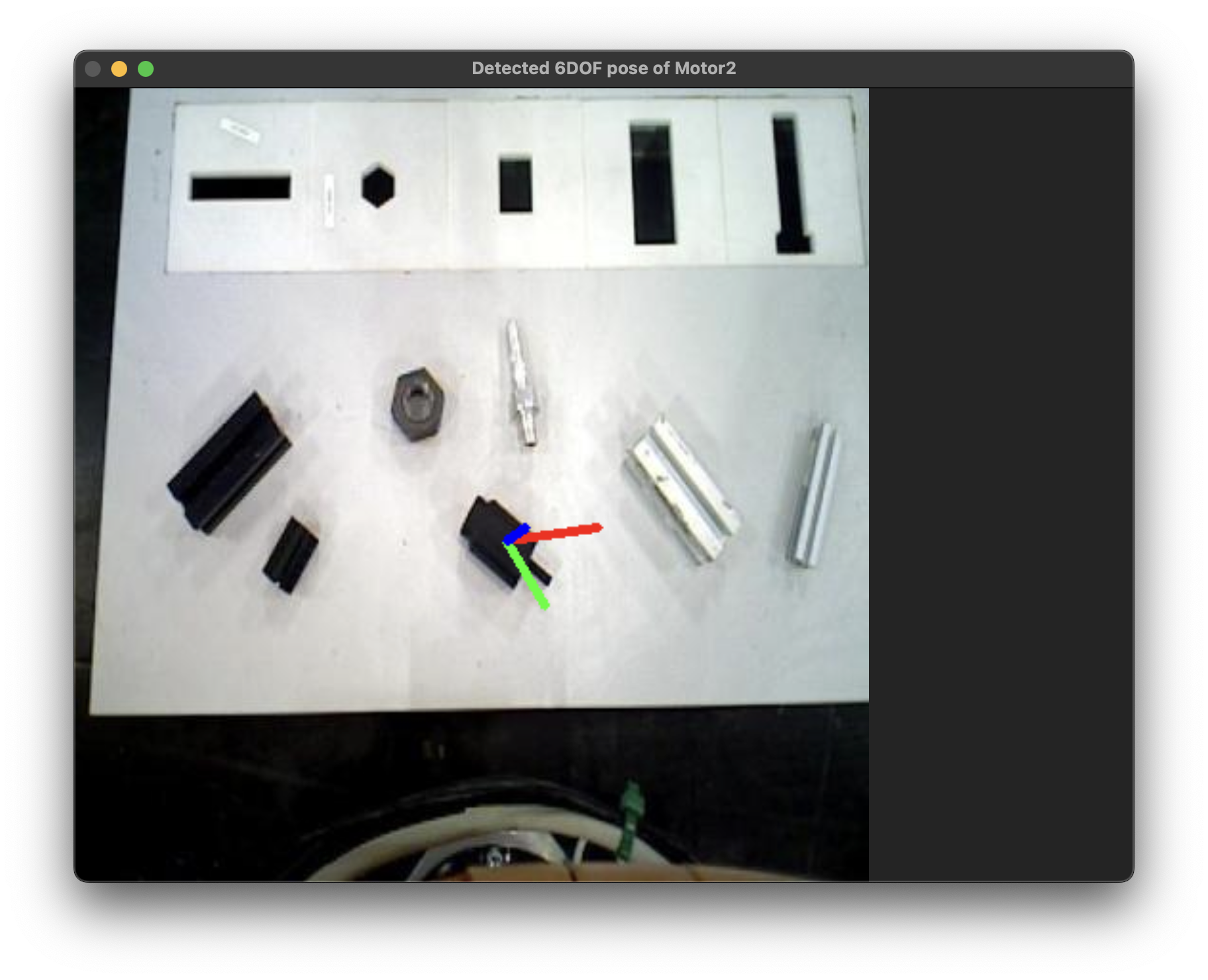

  • Estimated 6DOF poses visualized as coordinate frames.



Challenges and Improvements

Current Challenge: 6DOF Pose Estimation Lagging

Reason:

• Incorrect keypoint detection due to the presence of a variety of objects with complex shapes.

Proposed Improvement:

• Implement a combined keypoint + bounding box detection neural network.

Why It Works:

• Every object’s 2D keypoints can be detected and matched with its 3D points, enabling accurate Perspective-n-Point (PnP) solutions.

Limitation:

• The RCUP@Work dataset only provides bounding box annotations, not keypoints.
• Creating a custom, well-performing model for all 18 objects would require significant time for annotation and training.

Impact:

• This limitation results in lower accuracy and robustness in 6DOF pose estimation.
